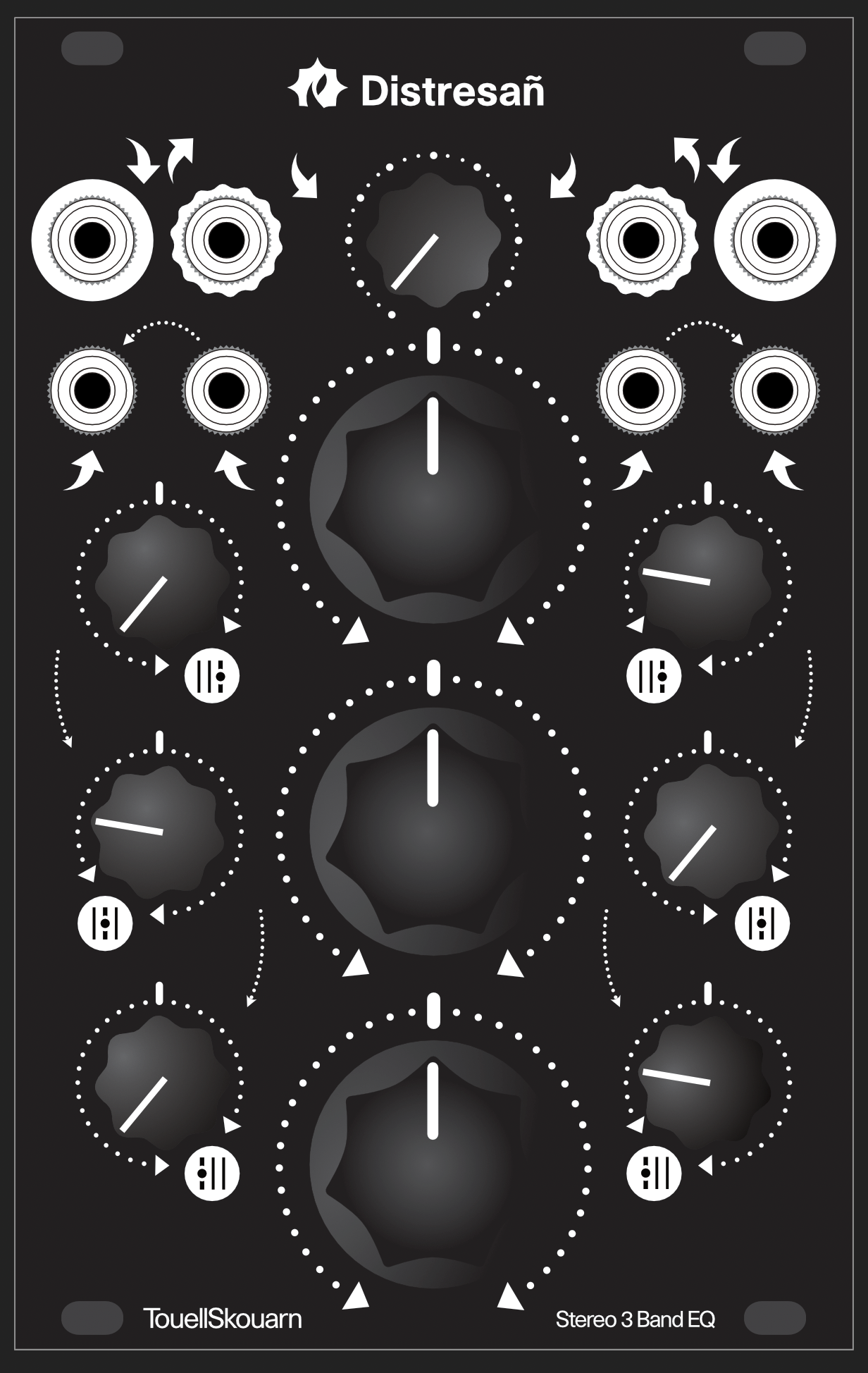

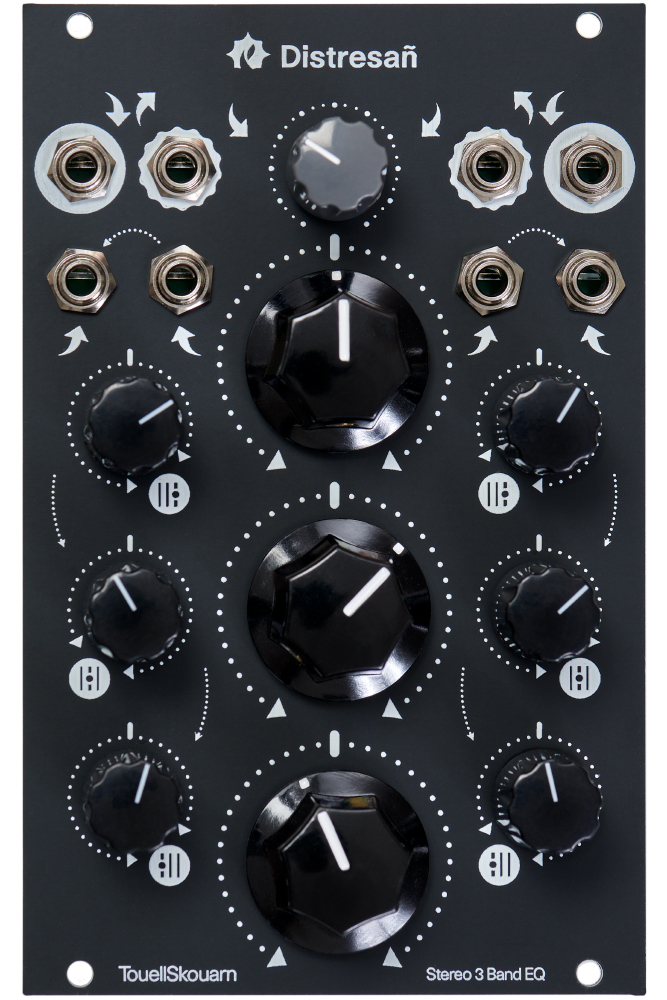

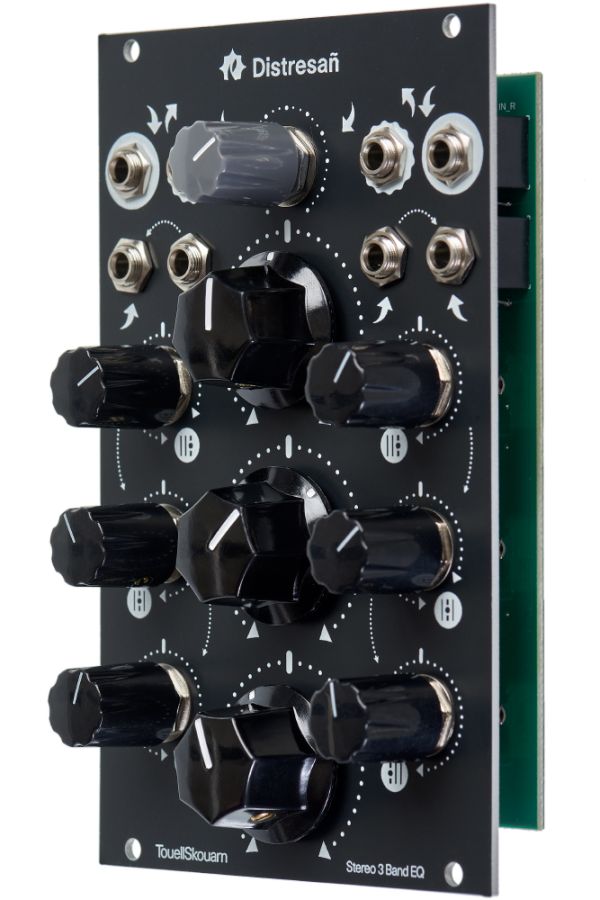

Distresañ - 3 Bands Stereo Cut/Boost EQ (on the left)

Distresañ

3 Bands Stereo Cut/Boost EQ
  • 16HP / Aluminium panel / Black
  • 3 Bands Stereo Cut/Boost EQ
  • Hi (± 14dB @ 15kHz)
    Mid (± 8dB @ 1kHz)
    Lo (± 10dB @ 30Hz)

  • Jacks : Inputs, Outputs, HI CV Inputs, Lo CV inputs
  • Hand-wired, Boutique quality, Made in Brittany, France (Plougastel-Daoulas, Landerneau).
  • Not that Stupid Breton name

Distresañ uses Baxandall shelving filters, known for their smooth and musical response. These filters allow for boosting or cutting of frequencies below (bass) or above (treble) certain points, then you can also add or remove medium frequencies (fixed at 1kHz). This EQ is particularly effective for overall tonal shaping and balance adjustments, rather than surgical frequency corrections. This type of equalisers is known for its natural-sounding and smooth frequency response, similar to the tone controls found in hi-fi systems. These equalizers are often praised for their ability to shape sound without introducing unwanted artifacts or distortion.This EQ is suitable for various applications including, tone shaping, mixing, mastering, and live sound reinforcement.

Technical

  • Size:
    16hp
  • Face plate material:
    Aluminium
  • +12v:
    10mA
  • -12v:
    10mA

User Manual
